Here's the first Download this was designed by Graham Marshall, there are 4 files. The Info sheet, Tubular Jig, Box design or a Zip file containing all 3.

1) Box Information Sheet

2) Tubular Jig sheet

3) Bird Box design sheet

4) Zip file all files

All have been virus checked before being uploaded to the website.

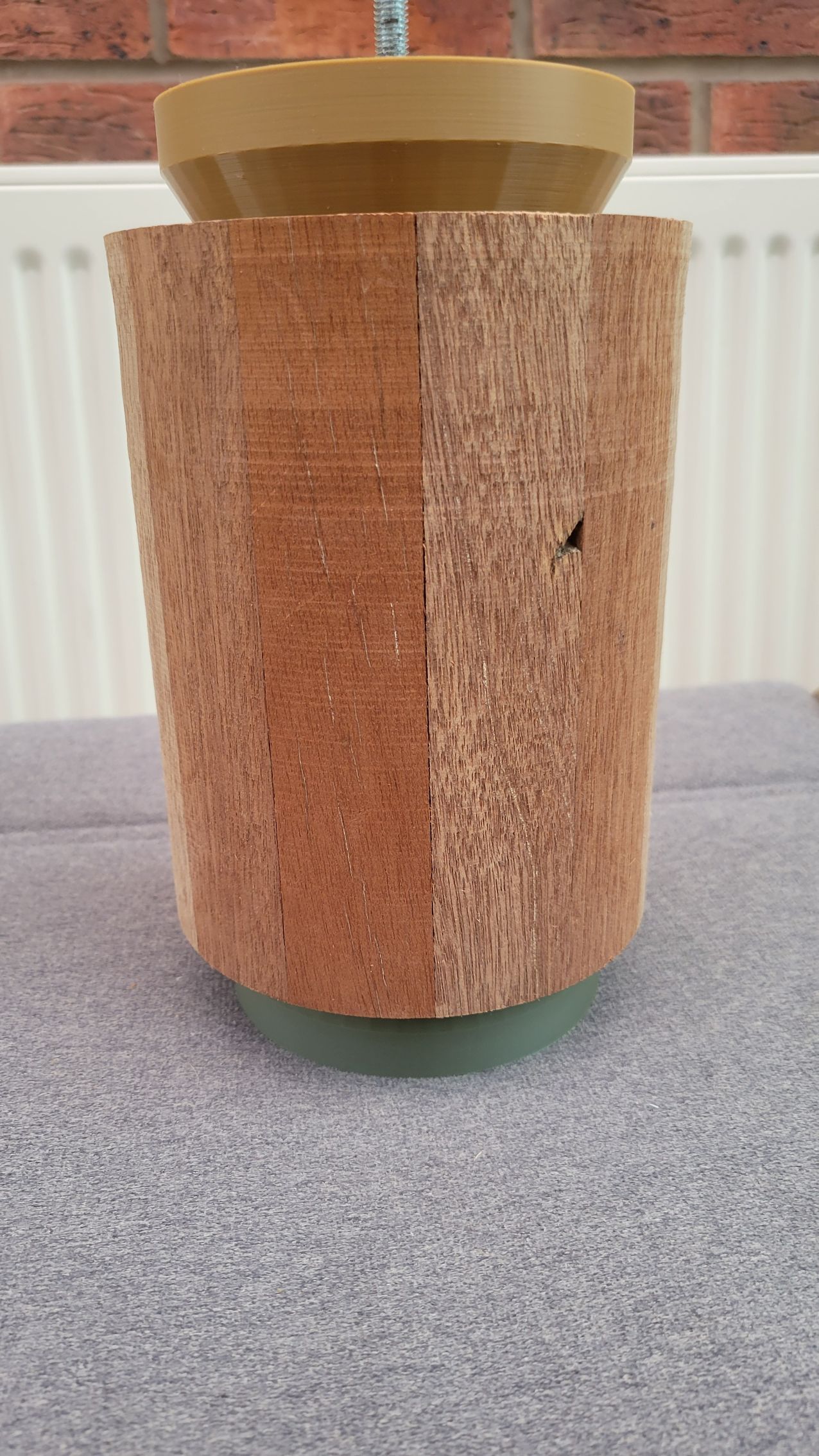

Side view of the Tubular jig for holding the staves to allow for safe turning. The 3d printed version below I've used a 10mm metal bar which works well.

Side view of the bird box and diagram of the staves together

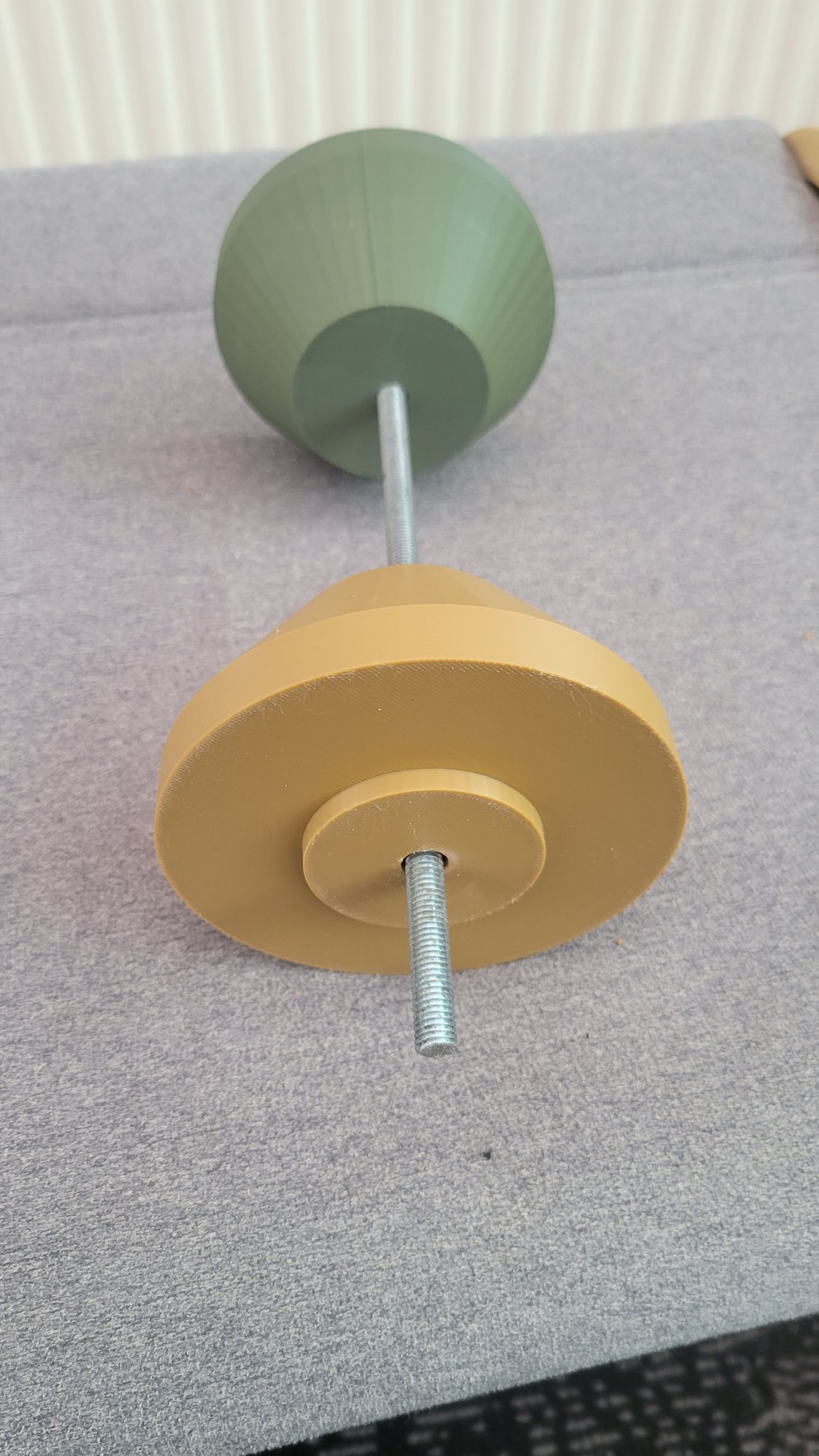

3D printed Tubular box jig with 10mm bar.

This is a 3d printed version with tenon for a chuck and a threaded metal bar.  I'll bring it to Monday's demonstration if you would like to have a look.
